ZYCO FAQ: How Does a W12 4-Roll Rolling Machine Work?

The W12 4-roll rolling machine is an advanced plate bending system used to roll metal sheets into cylindrical, conical, or curved shapes with high precision and efficiency. Compared to traditional 3-roll machines, the 4-roll design offers better control, higher automation, and improved productivity.

This machine is widely used in industries such as pressure vessel manufacturing, shipbuilding, steel construction, and energy equipment fabrication.

Structure of a W12 4-Roll Rolling Machine

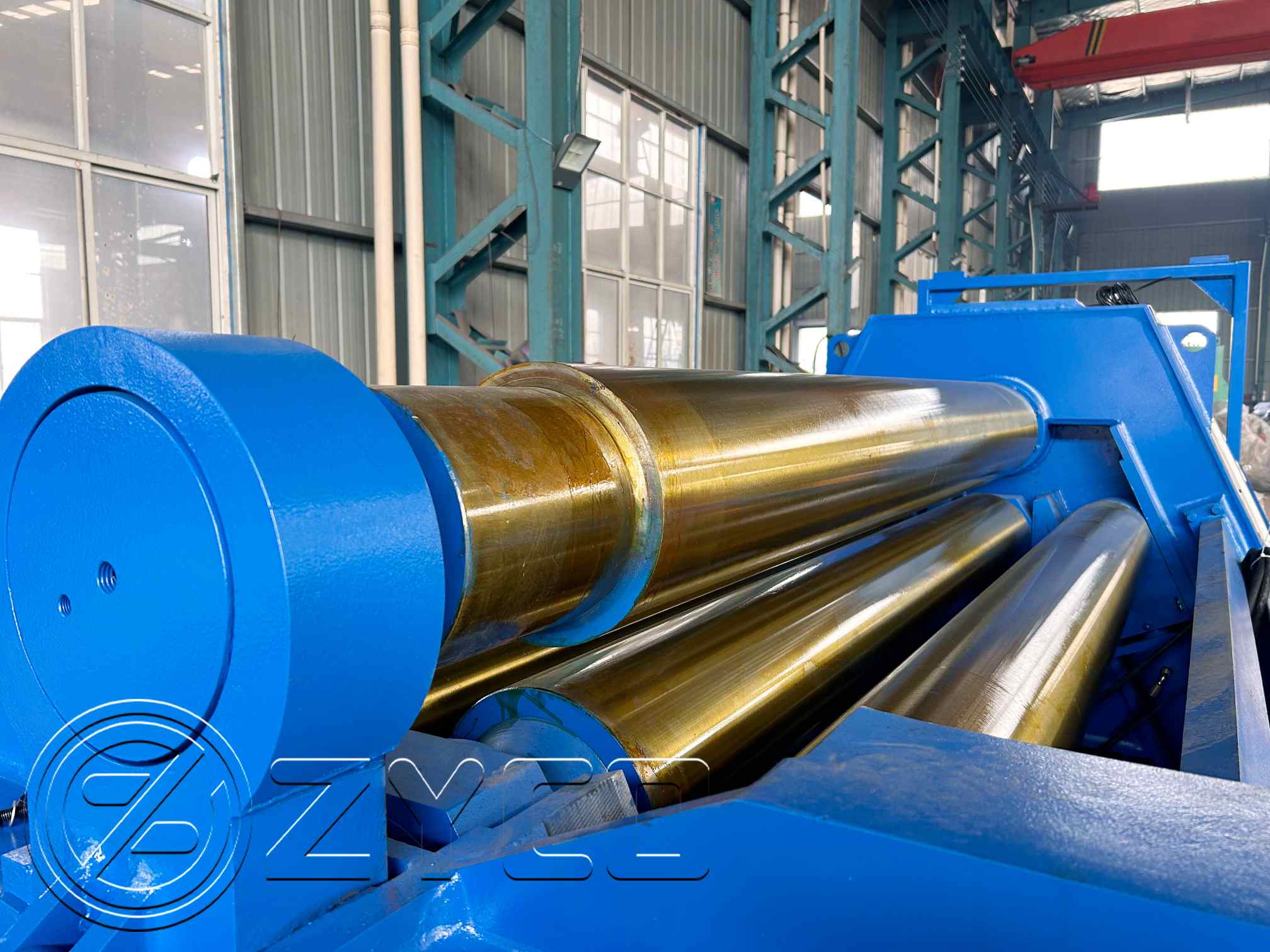

A W12 4-roll plate rolling machine consists of four main rollers:

1. Top Roll (Upper Roll)

· The main driving roll

· Applies pressure to the metal plate

· Works with the bottom roll to form the bending force

2. Bottom Roll (Lower Roll)

· Provides support and clamping

· Rotates together with the top roll

· Feeds the plate forward

3. Side Rolls (Left & Right Rolls)

· Responsible for bending and forming

· Move vertically or diagonally

· Control the curvature of the plate

This four-roll configuration allows pre-bending and rolling in a single setup, which significantly improves efficiency.

Working Principle of a W12 4-Roll Rolling Machine

The working process of a W12 4-roll rolling machine can be divided into several key steps:

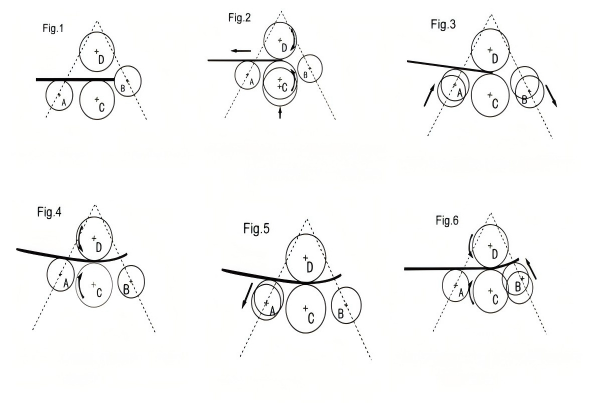

1. Plate Feeding and Clamping

The metal plate is inserted between the top roll and bottom roll, where it is firmly clamped.

· The bottom roll moves upward to secure the plate

· The top roll applies pressure

· The plate is held tightly to prevent slipping

This step ensures accurate positioning before bending begins.

2. Pre-Bending Process

One of the biggest advantages of a 4-roll machine is its ability to perform pre-bending without removing the plate.

· One side roll moves upward

· The plate edge is bent to reduce flat ends

· Both ends can be pre-bent precisely

This eliminates the need for secondary operations.

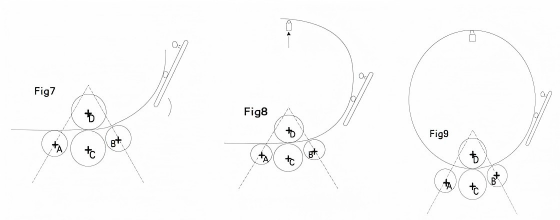

3. Rolling and Forming

After pre-bending, the machine begins the rolling process:

· The top and bottom rolls rotate to drive the plate

· The side rolls adjust position to create curvature

· Continuous rolling forms the plate into a cylinder or arc

Operators can control:

· Rolling radius

· Plate alignment

· Bending pressure

Modern machines use CNC systems for automated control.

4. Calibration and Final Shaping

Once the desired shape is achieved:

· The machine performs fine adjustments

· Roundness is corrected

· Final dimensions are verified

This ensures high precision and consistency.

5. Unloading the Workpiece

After rolling is complete:

· The side or top roll opens (depending on design)

· The finished cylinder is removed

· The machine resets for the next operation

Key Advantages of W12 4-Roll Rolling Machines

Compared to traditional rolling machines, the W12 4-roll system offers several advantages:

1. High Efficiency

· Pre-bending and rolling in one setup

· Reduced handling time

· Faster production cycles

2. Superior Precision

· Better control over plate positioning

· Improved roundness

· Minimal flat ends

3. Easy Operation

· Plate clamping reduces operator workload

· CNC automation simplifies programming

· Less manual intervention required

4. Increased Safety

· Stable plate positioning

· Reduced risk of slipping

· Advanced safety features in modern systems

Applications of W12 4-Roll Rolling Machines

W12 4-roll plate rolling machines are widely used in:

· Pressure vessel manufacturing

· Wind tower production

· Oil & gas pipelines

· Shipbuilding

· Steel structure fabrication

· Storage tank manufacturing

They are especially suitable for medium to thick plates and high-precision rolling tasks.

Why Choose a Modern CNC W12 4-Roll Rolling Machine?

Modern CNC-controlled machines provide advanced capabilities:

· Automatic plate alignment

· Digital control of rolling radius

· Memory for repeat jobs

· Real-time monitoring

· Reduced operator error

Manufacturers like ZYCO offer advanced W12 4-roll rolling machines designed for high precision, durability, and ease of operation, helping businesses improve productivity and reduce production costs.

Maintenance Tips for W12 4-Roll Rolling Machines

To ensure long-term performance:

· Regularly lubricate rollers

· Inspect hydraulic systems

· Check alignment and calibration

· Clean machine surfaces

· Monitor wear on critical components

Preventive maintenance reduces downtime and extends machine lifespan.

Conclusion

The W12 4-roll rolling machine is a powerful and efficient solution for metal plate rolling. Its ability to perform clamping, pre-bending, and rolling in a single operation makes it superior to traditional machines.

With the integration of CNC technology, modern 4-roll rolling machines offer high precision, ease of use, and improved productivity, making them an essential tool for today’s metal fabrication industry.
