Exploring the Secrets of CNC Hydraulic Shearing Machine

In the modern sheet metal processing industry, the position of shearing machines is irreplaceable. Whether it is automobile manufacturing, shipbuilding heavy industry, building structure, or home appliance production, precise cutting of metal sheets is a key process. Compared to traditional mechanical shearing machines, CNC hydraulic shearing machines, with their stable power systems and intelligent control, are becoming the industry's mainstream choice. Today, we'll explore the secrets of CNC hydraulic shearing machines and learn why they have become an industry favorite.

1. Classification of CNC hydraulic shearing machines

According to the different movement modes of the upper tool holder, CNC hydraulic shearing machines are mainly divided into two structures: Swing Beam type and Guillotine type.

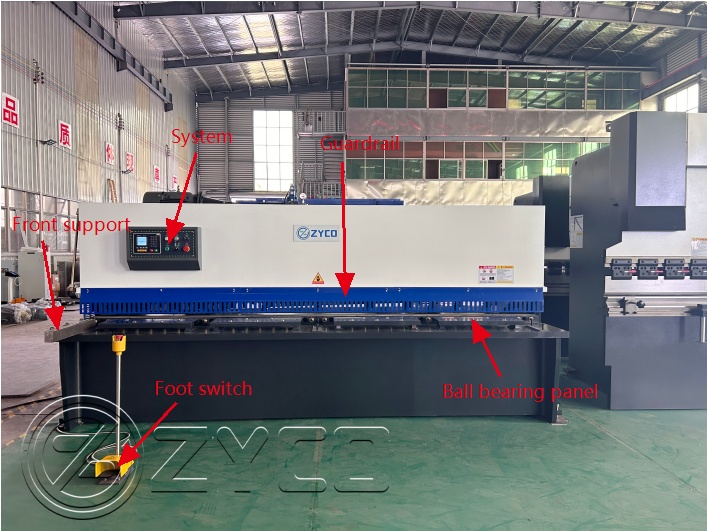

Swing Beam Shearing Machine

(1.System, used to input cutting dimensions and send operation instructions.

(2.Guardrail.

(3.Foot switch is the only tool for manual control of machine movement.

(4.Ball bearing panel for easy feeding.

(5.Front support, used to hold the sheared sheet.

Working principle: The upper tool holder swings in an arc around the fixed axis to complete the shearing.

Features: Simple structure, easy maintenance, low cost. Suitable for shearing medium-thin plates (generally less than 10mm). Easy to adjust the blade clearance, but the cutting accuracy is slightly lower than that of the guillotine type.

Typical applications: sheet metal processing plants, small and medium-sized steel structure enterprises.

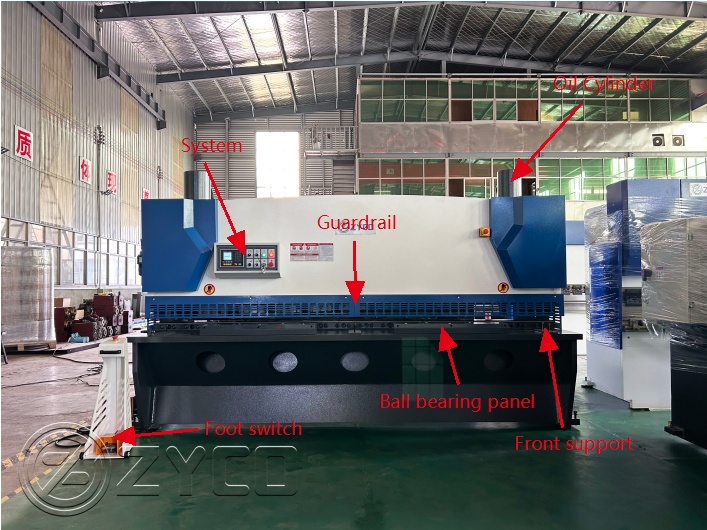

Guillotine Shearing Machine

(1.System, Used to input cutting size, adjust angle, flush oil, etc.

(2.Oil Cylinder, guillotine shearing machine cylinder is at the top of the machine.

(3.Guardrail.

(4.Foot switch is the only tool for manual control of machine movement.

(5.Front support, used to hold the sheared sheet.

(6.Ball bearing panel for easy feeding.

Working principle: The upper tool holder cuts in a straight line downward in a vertical or nearly vertical direction.

Features: Suitable for processing thick plates or those requiring high cutting accuracy. The shearing angle and the gap between the blades are adjustable, and the plate deformation is small.

Typical applications: shipbuilding, large steel structures, and precision sheet metal processing.

Summary: The swing beam type is suitable for pursuing economy and batch processing of thinner plates, while the guillotine type is more suitable for high-precision or thick plate cutting needs.

2. Advantages of CNC hydraulic shearing machine

(1. High Shearing Precision and Excellent Cut Quality

The hydraulic transmission system ensures uniform shearing force, reducing sheet warping and burrs.

The CNC system precisely adjusts the blade gap to accommodate materials of varying thicknesses.

The guillotine type machine has a smooth incision and little deformation.

(2. Convenient Operation, Significantly Improved Efficiency

The backgauge is CNC-adjustable, allowing for automatic positioning upon dimension input.

Multi-step programming supports continuous shearing of multiple specifications.

Significantly reduce manual errors and improve production efficiency.

(3. Adaptable to Various Processing Needs

Adjustable cutting angle and blade gap adapt to various materials, including carbon steel, stainless steel, and aluminum.

Suitable for production environments with frequent specification changes, shortening switching time.

(4. Sturdy Structure and Long Life

The frame is welded and tempered for strong deformation resistance.

Adopting imported seals and high-quality oil pump, it runs stably.

(5. High Safety Features

The hydraulic pressing device prevents the sheet from sliding.

Equipped with photoelectric protection and an emergency stop button, the machine ensures safe operation.

3. Wide range of application fields

CNC hydraulic shearing machines play an important role in many industries and meet diverse metal sheet processing needs.

Sheet metal processing: efficient shearing of components such as chassis, control cabinets and ventilation equipment.

Elevator manufacturing: Processing car wall panels, door panels and structural parts to ensure quality and safety.

Engineering machinery and power equipment: cutting cab covers, switch cabinets and key components of power transformation equipment.

Architectural decoration: cutting curtain wall panels and metal decorative materials, taking into account both aesthetics and durability.

Automobile and home appliance manufacturing: batch processing of body parts, brackets and home appliance casings.

New energy field: efficient cutting of structural parts such as wind power and photovoltaic brackets.

Conclusion

CNC hydraulic shears, with their high precision, intelligent control, and excellent safety features, have become indispensable equipment in modern sheet metal processing. In practical use, equipment stability and comprehensive service support are equally crucial. After many industry surveys and customer feedback, ZYCO CNC hydraulic shearing machine has won wide recognition for its reliable quality and excellent after-sales service. Choosing the right equipment not only improves production efficiency but also provides companies with a lasting competitive advantage.
